PRODUCT FEATURES
Release fascia and relieve muscle spasm
Relying on RRT three-dimensional energy focusing technology, vertical impact combined with circular arc lateral vibration triggers TVR tonic resonance reflex, breaking up fascial adhesions and improving muscle stiffness, cramps, and nodules. It solves problems such as lumbar muscle strain from prolonged sitting, tight shoulders and neck, and sore and swollen arms, with a relaxation effect far exceeding that of ordinary fascial guns.
Accelerate blood circulation and metabolize lactic acid edema
High-frequency three-dimensional vibration dredges subcutaneous microvessels and accelerates lymphatic return; it quickly discharges lactic acid after exercise, alleviating limb soreness and swelling; it improves lower limb edema, hand and foot soreness, and fatigue, enhances soft tissue oxygen supply, and restores muscle elasticity.
Targeted physical therapy to improve joint mobility
Paired with a dedicated massage head, it can gently act on the soft tissues surrounding the shoulders, elbows, wrists, and knee joints, relieving fascial tension around the joints, reducing joint stiffness, and enhancing joint flexibility.
PRODUCT SPECIFICATION
| 3D Energy Gun (NVG‑One Pro) — Detailed Specification Table | |
| Basic Product Information | |
| Parameter | Details |

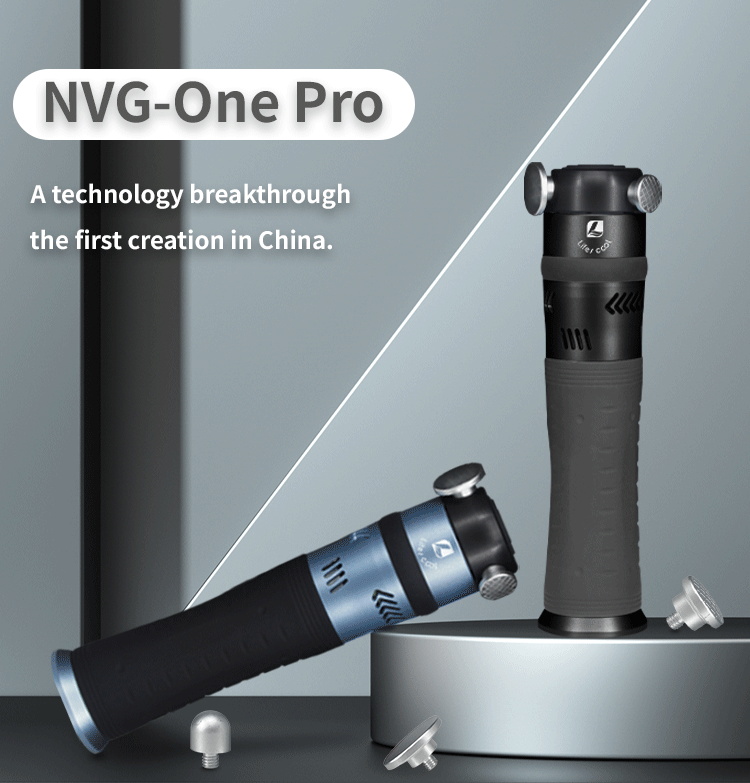

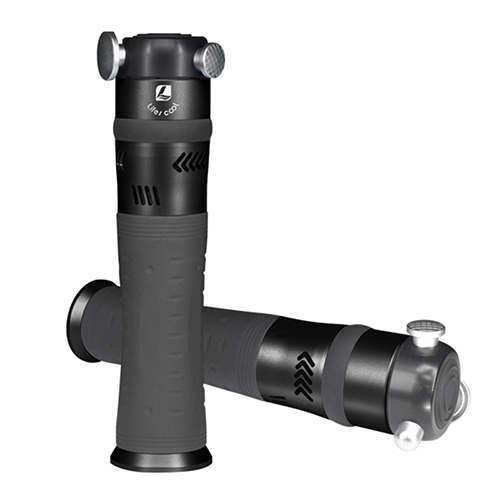

| Product Model | NVG‑One Pro |
| Product Name | 3D Energy Gun |
| Core Technology | RRT 3D Three-Dimensional Energy-Gathering Patented Technology |
| Product Positioning | Professional-grade fascia release and soft tissue therapy device |
| Applicable Scenarios | Gym, physiotherapy clinic, rehabilitation institution |
| Core Technology & Performance Parameters | |
| Parameter | Details |
| Vibration Mode | Three-dimensional vibration (horizontal, rotational, sliding) |
| Maximum Speed | 9,000 RPM |
| Vibration Frequency | Approx. 150 times/second |
| Stroke/Amplitude | 2mm (vertical amplitude) |
| Effective Working Depth | Deep fascia (targeted depth of 1–2mm) |
| Core Principle | TVR (Tonic Vibration Reflex) principle |
| Vibration Efficiency | 3–5 times that of an ordinary massage gun |
| Applicable Areas | Muscle groups across the whole body and soft tissue around joints (ordinary massage guns are prohibited from being used on joints) |
| Hardware & Structure Parameters | |
| Parameter | Details |

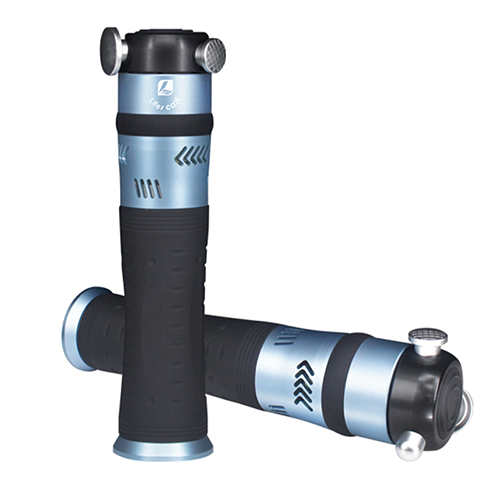

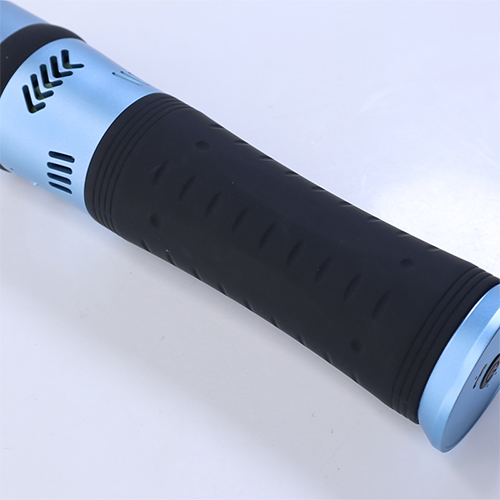

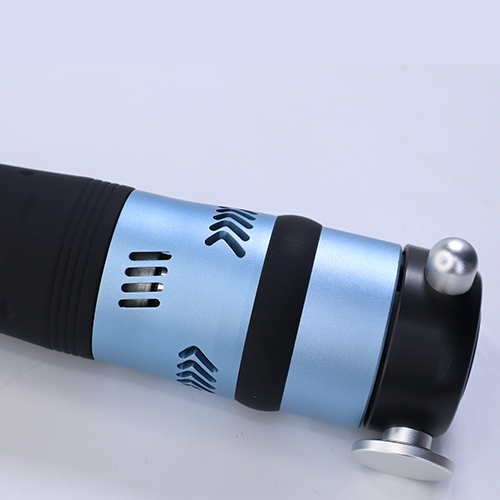

| Main Material | Aluminum alloy body |
| Net Weight | 852.5g |

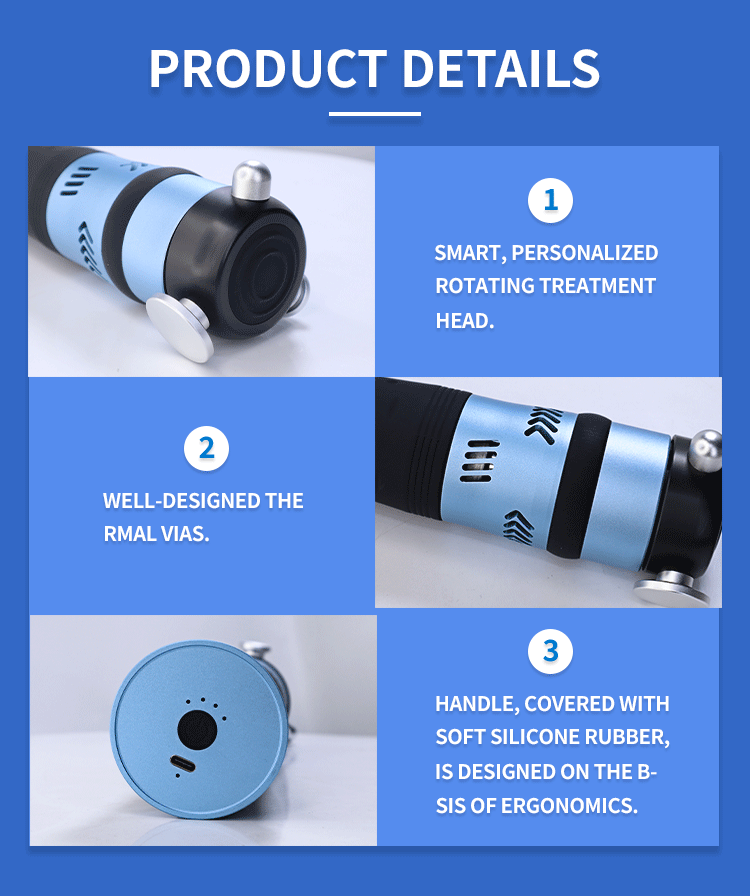

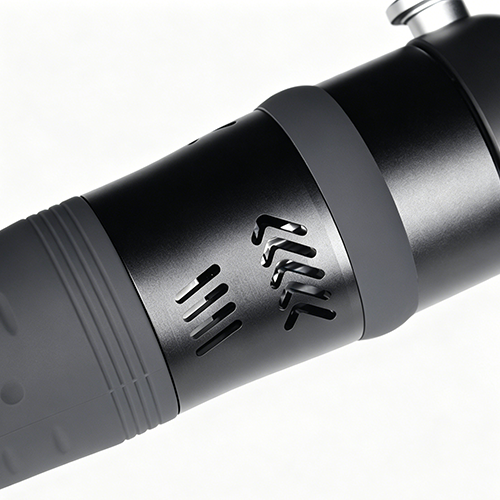

| Body Structure | Hollow vented heat-dissipation structure |

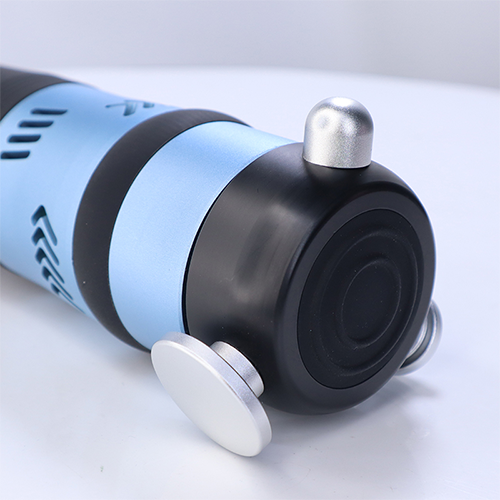

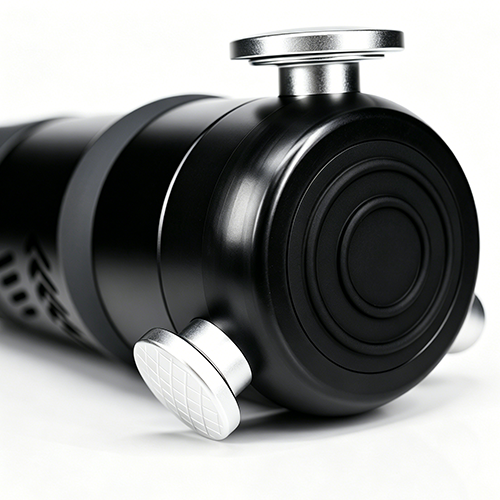

| Massage Head Design | 3D detachable metal massage head + silicone massage head on top |
| Massage Head Specs | Single-point acupoint type, sensitive soft tissue type, medium muscle group type, large muscle group type |
| Body Dimensions | Approx. 75×75×256mm (L×W×H) |
| Function & Control Parameters | |
| Parameter | Details |
| Speed Modes | 4 adjustable levels |
| Speed Description | Level 1 – deep impact; Level 2 – quick relaxation; Level 3 – fascia release; Level 4 – competitive recovery |

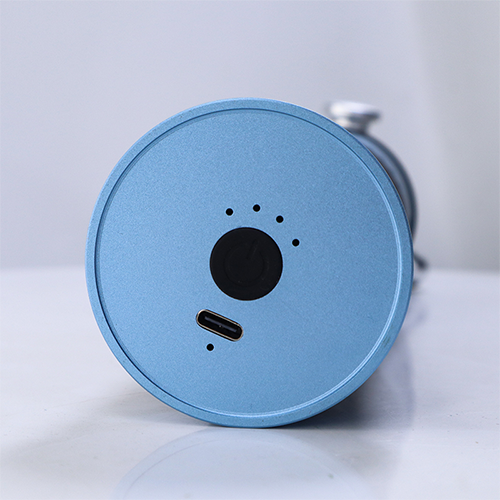

| Control Method | One-button physical button control |
| Core Functions | Fascia release, muscle spasm relief, blood circulation promotion, lactic acid metabolism, joint mobility improvement, scar tissue softening, acupoint pressure relief, awakening muscle vitality |
| Safety Protection | Smart temperature control protection, motor voltage stabilization protection |
| Operating Logic | Follows traditional Chinese acupressure logic, relaxing quickly from shallow to deep |
| Electrical & Battery Parameters | |
| Parameter | Details |
| Built-in Battery | 3200mAh high-capacity lithium battery |
| Charging Port | Universal Type-C charging port |
| Rated Voltage | 11.1V DC |
| Rated Power | 35.52W |
| Continuous Working Time (full charge) | Approx. 1 hour |
| Charging Time | Approx. 4 hours |
| Noise Control | ≤75dB (at normal usage level) |
| Accessory List | |
| Parameter | Details |
| Main Unit | 1 unit |
| Massage Heads | 4 types (single-point acupoint, sensitive soft tissue, medium muscle group, large muscle group), installed on the main unit and non-replaceable |
| Type-C Charging Cable | 1 piece |
| User Manual | 1 copy |
| Certificate of Conformity | 1 copy |
| Applicability & Safety Parameters | |
| Parameter | Details |
| Applicable Users | High-intensity fitness enthusiasts, professional athletes |
| Contraindicated Users | 1. People with infection, open wounds, burns, or nerve entrapment syndrome at the application site. 2. People with deep vein thrombosis or embolism, or a history of severe osteoporosis. 3. People with acute-stage/healing-stage fractures at the application site. 4. People with unstable vital signs. 5. People with poorly controlled blood pressure, or a history of fainting (syncope) due to low blood pressure. People with skin damage, those in the acute inflammatory stage, people with severe osteoporosis, pregnant women, and people with electronic devices such as cardiac pacemakers. 6. People with severe heart disease such as severe heart failure, unstable angina, malignant arrhythmia, etc. 7. People with tumor-related pain. |
| Usage Contraindications | Do not apply directly to bony protrusions, blood vessels, nerves, eyeballs, etc.; Do not use continuously on the same area for a long time (no more than 60 seconds per session); Do not use on swollen or inflamed areas or rashes |
| Executive Standards | GB4706.1-2005 “Household and similar electrical appliances — Safety — Part 1: General requirements” |
| Patent Status | Domestic patents applied for both the design and the utility model |
| Packaging & Logistics Parameters | |
| Parameter | Details |
| Net Weight per Unit | Approx. 0.86kg |
| Gross Weight (10 units) | Approx. 15kg |
| Packaging Dimensions (10 units) | Approx. 450mm×320mm×46mm (L×W×H) |
| Packaging Material | Storage bag + carton |
| Storage Environment | Temperature -5°C to +50°C, humidity 5%RH to 85%RH, free of corrosive gases |
PRODUCT FUNCTIONS
1. Full-Body Application
Designed for whole-body use, the device covers every major muscle group:
- Head & Neck Muscles — ease tension built up from desk work, screen time and poor posture.
- Shoulder & Arm Muscles — release stiffness in the shoulders, upper arms and forearms.
- Chest & Back Muscles — relieve tightness across the chest, mid-back and lower back.
- Lower-Limb Muscles — target the thighs, calves and surrounding leg muscles after long periods of standing or training.
- Arm & Thigh Muscles — provide focused relief where strain accumulates most.
- Ankle Joint — soothe the soft tissue around the ankle for greater mobility and comfort.
2. Where to Use the Four Massage Heads
- Massage Head 1 — ideal for acupoints, meridians and collateral channels (Traditional Chinese Medicine terms), delivering precise point-pressure stimulation.
- Massage Head 2 — made for soft tissue and sensitive areas of the body, mainly targeting the hands, fingers, feet and toes.
- Massage Head 3 — suited to medium and large muscle bundles for deeper, broader coverage.
- Massage Head 4 — designed for large muscle bundles, offering maximum power for the biggest muscle groups.
3. Core Technology
- Wireless Design with Type-C Charging — cord-free operation plus a universal Type-C port for fast, convenient recharging.
- Simulates Body Massage — replicates the feel and rhythm of a professional hands-on massage.
- Simple One-Button Operation — effortless to use, with no complicated settings.
- High-Frequency Vibration — delivers rapid, penetrating vibrations that work deep into the muscles.
- Relieves Body Pain — helps ease everyday aches and discomfort across the body.
4. RRT — A Technological Breakthrough
Thanks to the patented RRT three-dimensional energy-gathering technology, this device brings professional-grade relief home. Whether you suffer from neck pain or lower-back and abdominal discomfort, it can be effectively soothed with just a few sessions. What's more, it's the perfect recovery partner after exercise — helping to calm muscle soreness, speed up recovery and leave you feeling refreshed and ready for your next workout.
5. High-Torque Quiet Motor
Experience a truly quiet massage. The high-torque silent motor delivers powerful, consistent output while keeping noise to a whisper, so you can relax and unwind without disturbance — whether at home, in the gym or at the office.
