F09

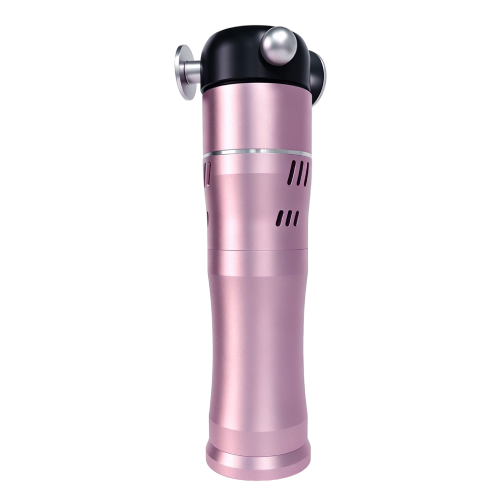

  • Features RRT 3D Energy-Gathering Patent Technology with a 3D stereoscopic vibration mode for high vibration efficiency.
  • Constructed with an aluminum alloy body and equipped with multiple massage heads, ensuring stable power and excellent heat dissipation.
  • Offers 3 adjustable intensity levels; high-frequency, low-amplitude vibrations help release fascia, promote blood circulation, and accelerate tissue repair.
  • Lightweight design with wireless charging; suitable for various body parts, combining muscle relaxation, joint care, and soft tissue recovery in one versatile device.

PRODUCT FEATURES



140x140

Multi-Mode Applicability

  • Daily Mode: Relieves shoulder, neck & lumbar strain for sedentary people
  • Sports Mode: Eliminates post-workout lactic acid, relaxes thighs & glutes
  • Rehabilitation Mode: Eases stiff shoulders, knees, wrists; boosts joint mobility
  • Shaping & Repair: Reduces scar tissue and leg edema. For home, gym, clinic & office use

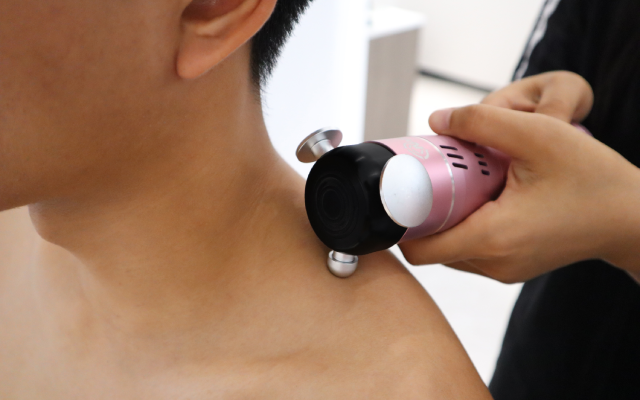

Simple and Safe Operation

  • Aligns with Traditional Chinese Medicine acupoint pressure logic, relaxing muscles from shallow to deep layers.
  • Safe to use by avoiding areas with prominent blood vessels, nerves, or bones.
  • Wireless and portable for convenient use anytime, anywhere.



140x140

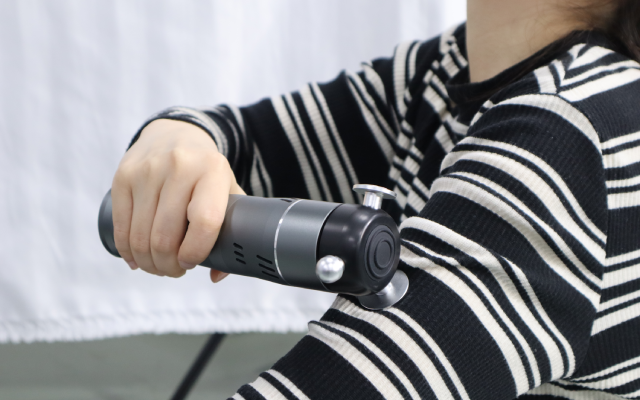

Intelligent Energy-Focusing Technology

  • 3D massage heads target deep fascia, fingertip kneading relieves muscle soreness.
  • Constant heat improves blood circulation for better relaxation.
  • Long-life lithium battery, Type-C charging, cord-free operation.
  • Light ergonomic portable build, professional massage for home, travel & office.

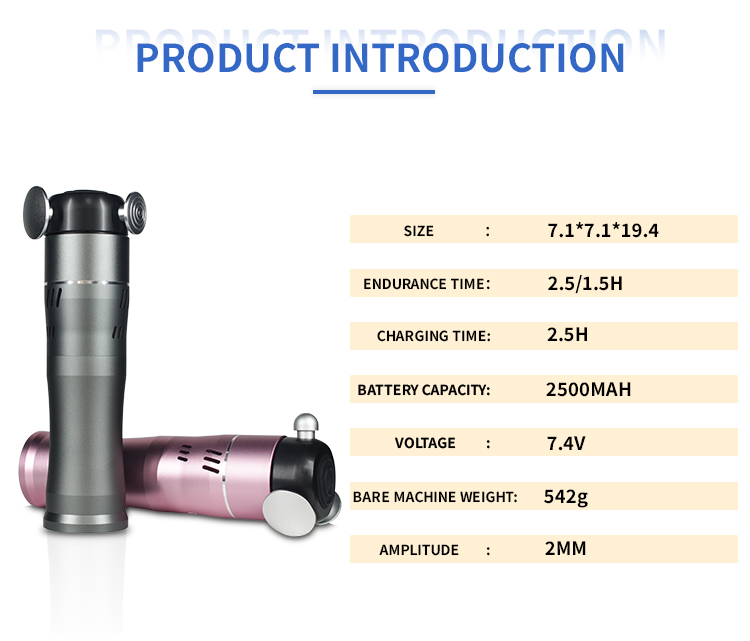

PRODUCT SPECIFICATION



3D Energy Concentrator (NVG-One) - Detailed Specifications
Basic Product Information
Parameter Specification
Product Model FPM-09
Product Name 3D Energy Concentrator
Core Technology RRT 3D Stereo Energy-Concentrating Patented Technology
Product Positioning Professional-grade fascia release and soft tissue physiotherapy device
Applicable Scenarios Home use, gyms, physiotherapy studios, office settings
Core Technical Performance
Parameter Specification
Vibration Mode Lateral rotary sliding 3D stereo vibration
Max. Speed 6,100 rpm
Vibration Frequency Approx. 150 times/second
Stroke / Amplitude 2 mm (vertical amplitude)
Effective Action Depth Deep fascia (1-5 mm targeted depth)
Core Principle TVR tonic vibration reflex principle
Vibration Efficiency 3-5 times that of ordinary massage guns
Applicable Areas Full-body upper and lower muscle groups, soft tissues around joints (ordinary massage guns are prohibited on joints)
Hardware & Structural Parameters
Parameter Specification
Main Body Material Aluminum alloy body
Net Weight 542 g
Body Structure Hollow ventilated heat-dissipation structure

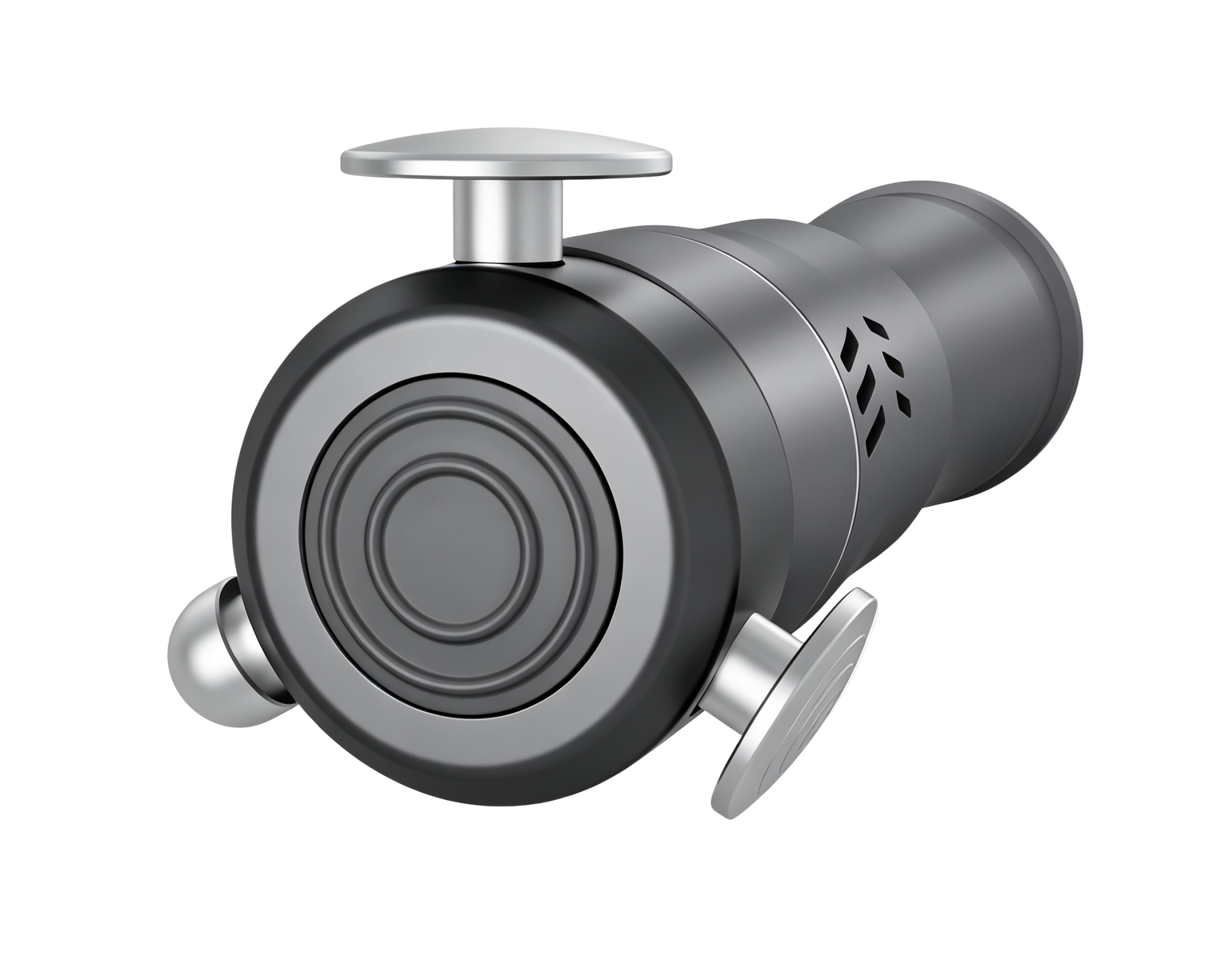

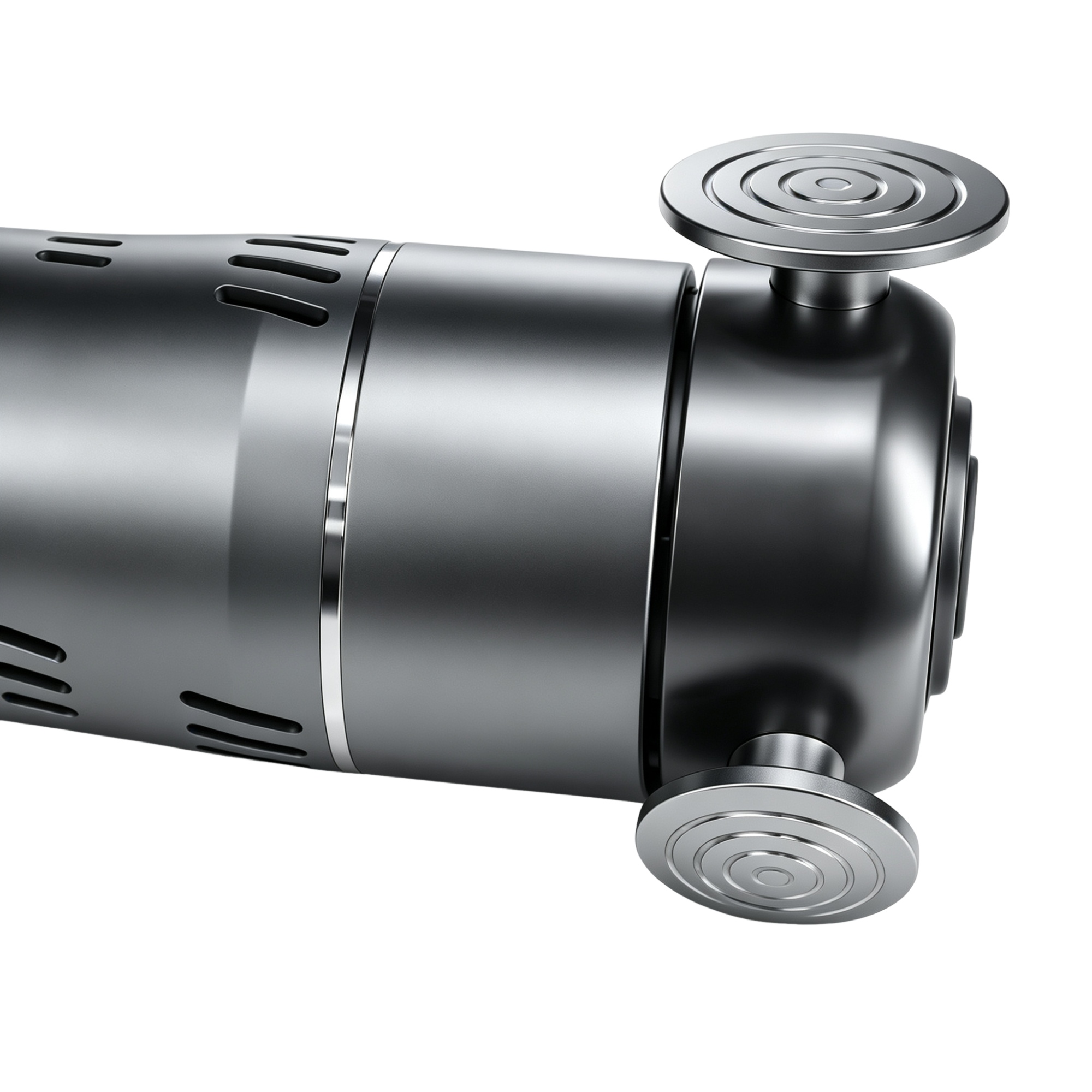

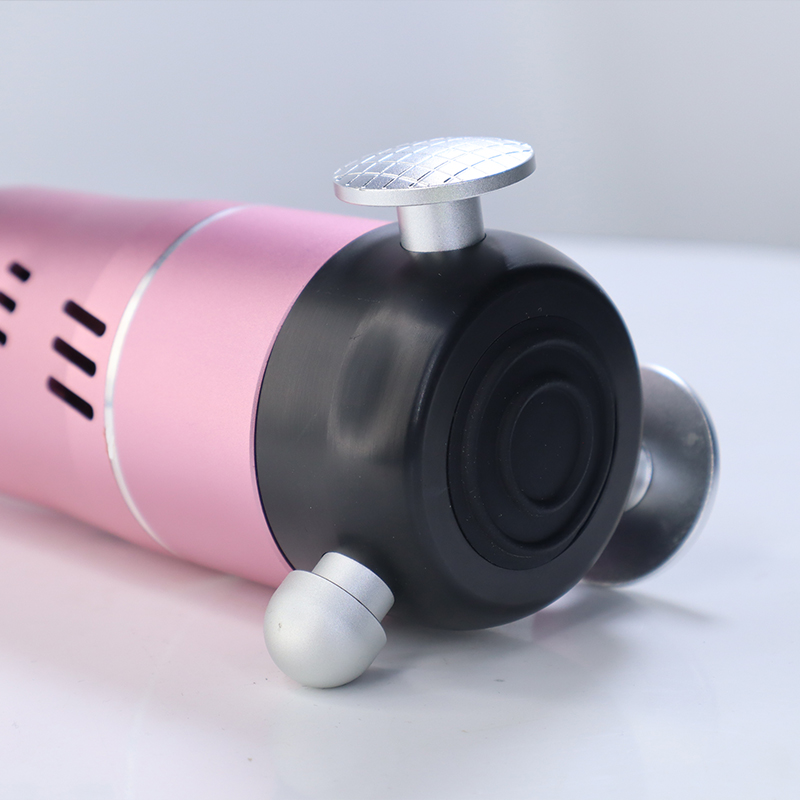

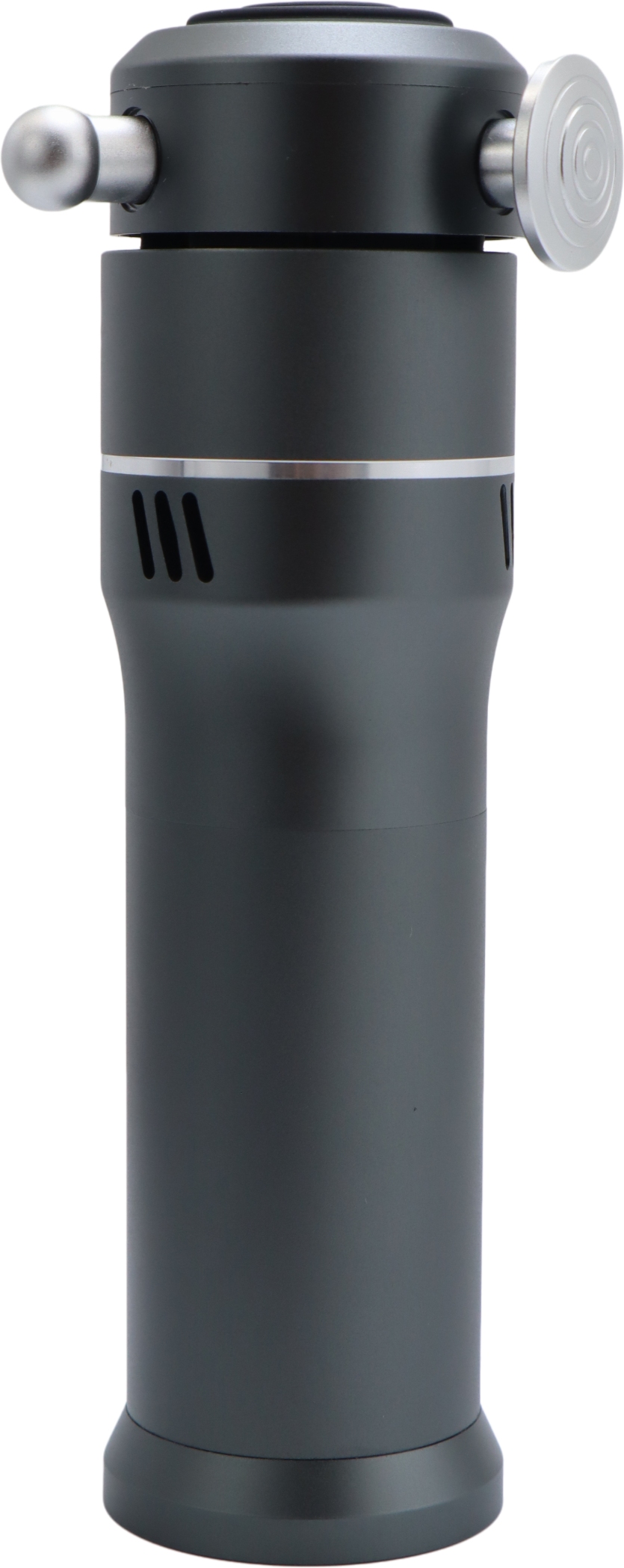

Massage Head Design 3D split-type metal massage head + top silicone massage head

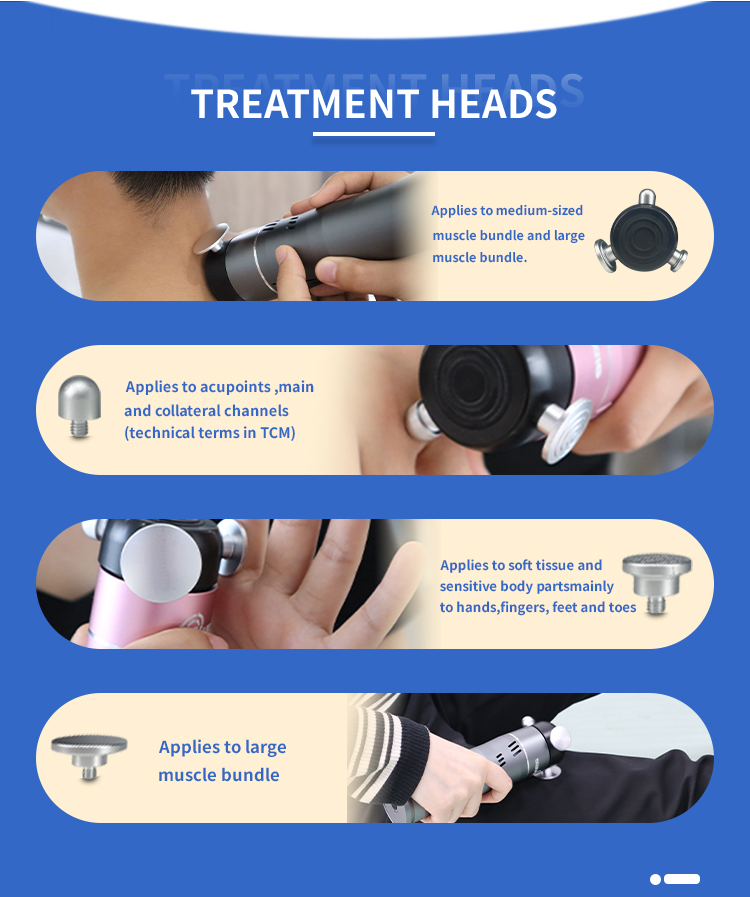

Massage Head Types Single-point acupoint type, sensitive soft tissue type, medium muscle group type, large muscle group type
Body Dimensions Approx. 65 x 65 x 192 mm (L x W x H)
Function & Control Parameters
Parameter Specification
Speed / Mode 3 adjustable levels
Level Description Level 1 - Fascia relaxation; Level 2 - Lactic acid breakdown; Level 3 - Deep impact
Control Method One-button physical key control
Core Functions Fascia release, muscle spasm relief, blood circulation promotion, lactate metabolism, joint mobility improvement, scar tissue softening, acupoint point-pressure soothing
Safety Protection Intelligent temperature control protection, motor voltage-stabilization protection
Operation Logic Follows TCM acupoint point-pressure logic, relaxing from shallow to deep
Electrical & Battery Parameters
Parameter Specification
Built-in Battery 2,500 mAh high-capacity lithium battery

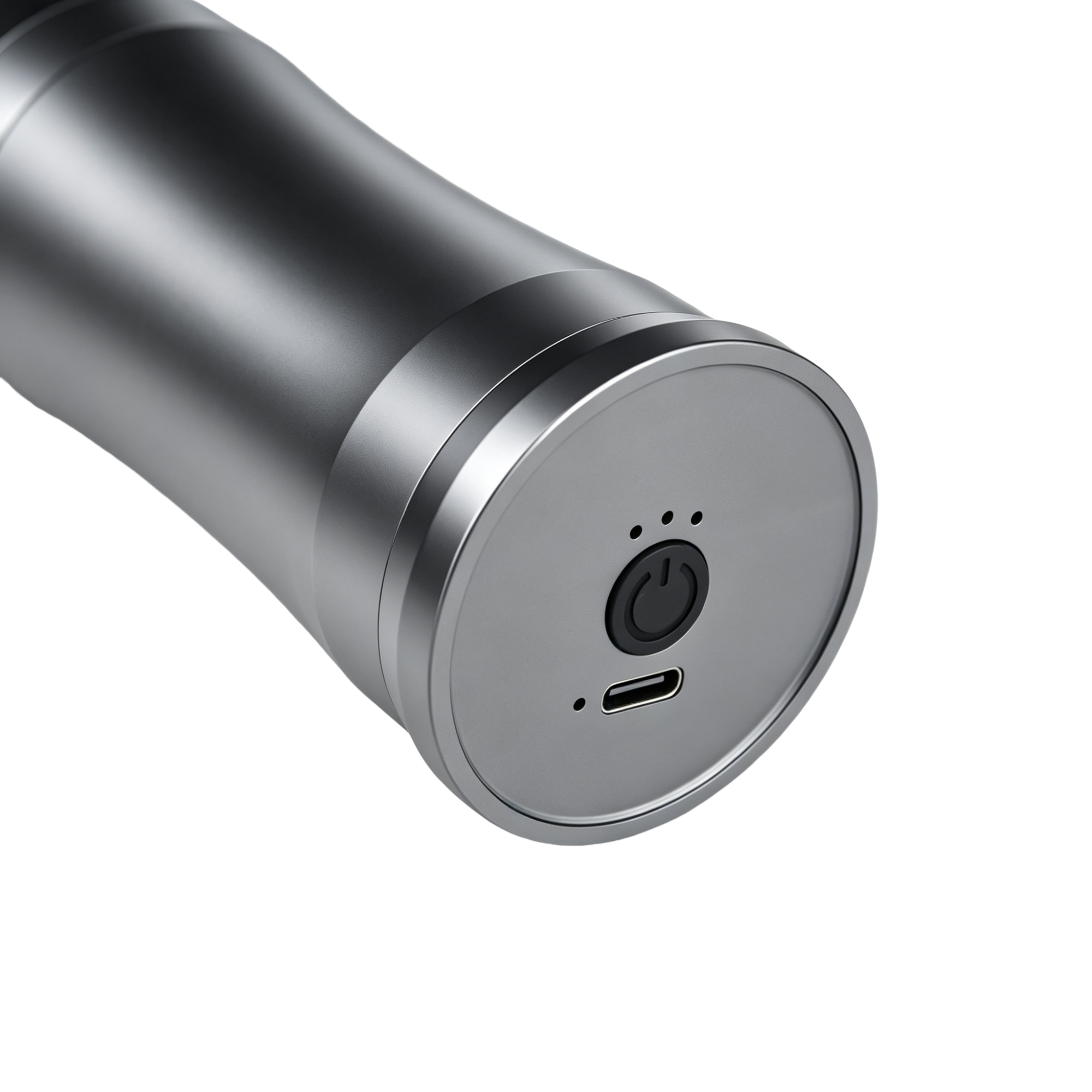

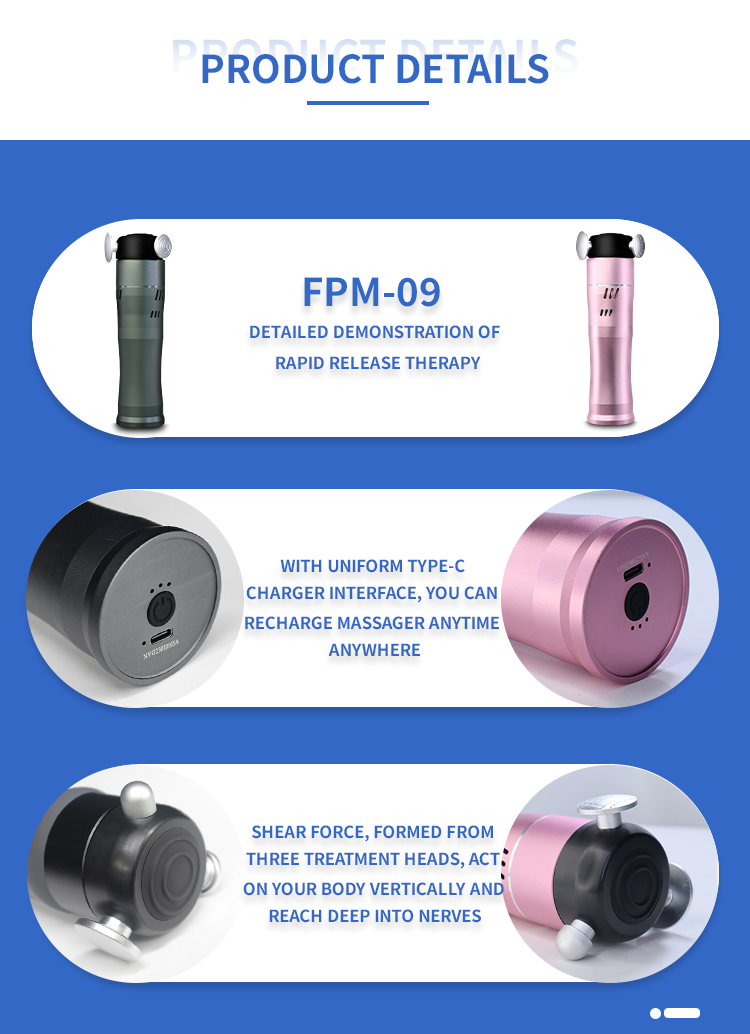

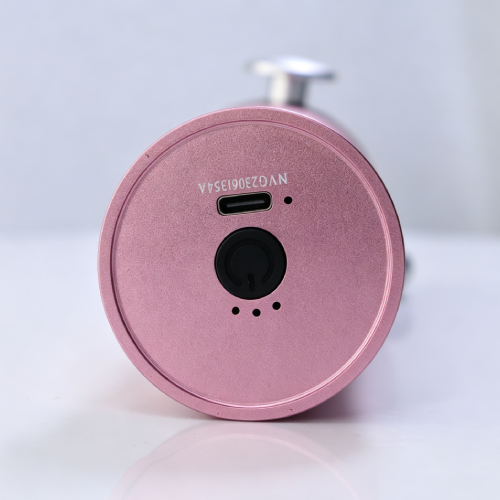

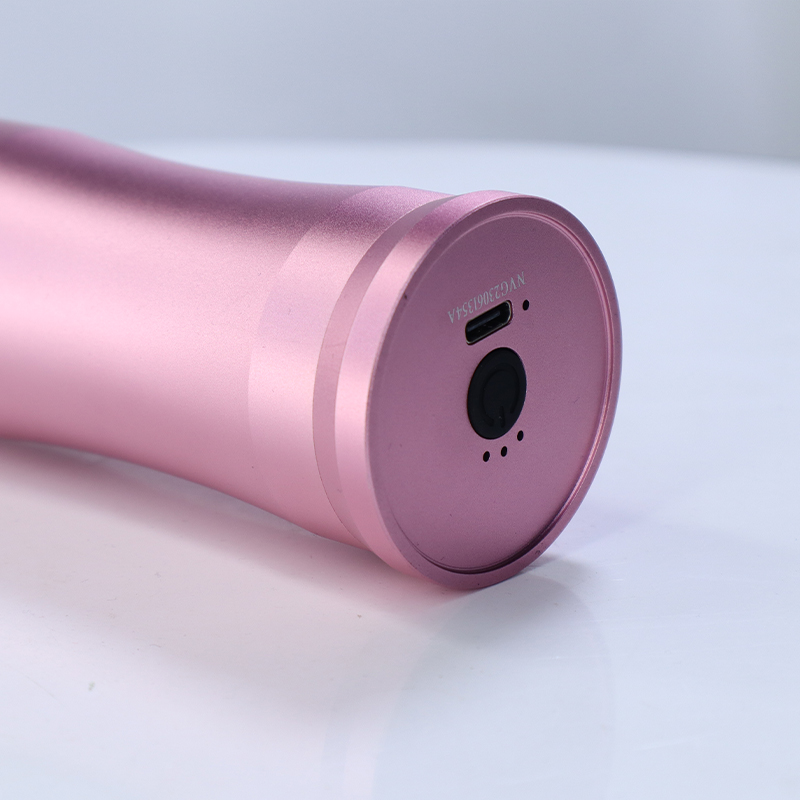

Charging Interface Type-C universal charging interface
Rated Voltage 7.4 V DC
Rated Power 45 W
Continuous Runtime (Full Charge) Approx. 2 hours
Charging Time Approx. 2.5 hours
Noise Control <= 75 dB (normal use levels)
Package Contents
Parameter Specification
Host Device 1 unit
Massage Heads 4 types (single-point acupoint, sensitive soft tissue, medium muscle group, large muscle group) - pre-installed on the host, non-interchangeable
Type-C Charging Cable 1 piece
Product Manual 1 copy
Certificate of Conformity 1 copy
Applicable & Safety Parameters
Parameter Specification
Applicable Users Sedentary office workers, physical laborers, fitness enthusiasts, postpartum women, middle-aged and elderly for daily health care
Contraindicated Users 1. Users with infection, open wounds, burns, or nerve entrapment syndrome at the application site.
2. Users with deep vein thrombosis or embolism, or a history of severe osteoporosis.
3. Users with acute-phase / healing-phase fractures at the application site.
4. Users with unstable vital signs.
5. Users with poorly controlled blood pressure, or a history of syncope due to hypotension; users with skin lesions, in acute inflammation stage, with severe osteoporosis; pregnant women; users with implanted electronic devices such as cardiac pacemakers.
6. Users with severe heart disease such as severe heart failure, unstable angina, or malignant arrhythmia.
7. Users with pain caused by tumors.
Usage Contraindications Do not apply directly to bony prominences, blood vessels, nerves, eyeballs, or the like; do not use continuously on the same area for an extended period (no more than 60 seconds per session); do not apply to swollen, inflamed areas or skin rashes.
Compliance Standard GB 4706.1-2005 "Safety of household and similar electrical appliances - Part 1: General requirements"
Patent Status Appearance and utility model patents applied for domestically
Packaging & Logistics Parameters
Parameter Specification
Single-unit Net Weight Approx. 0.55 kg
Gross Weight (10 units) Approx. 9.7 kg
Packaging Dimensions (10 units) Approx. 420 x 240 x 38 mm (L x W x H)

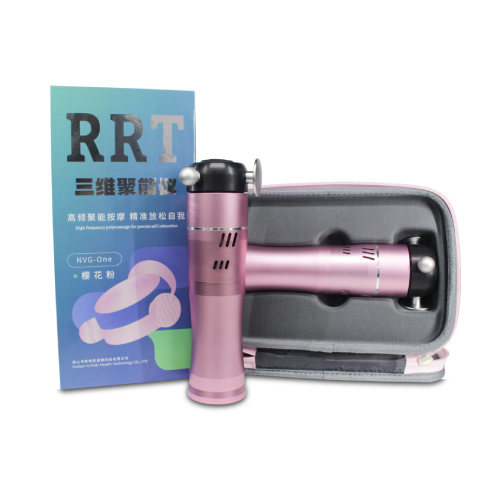

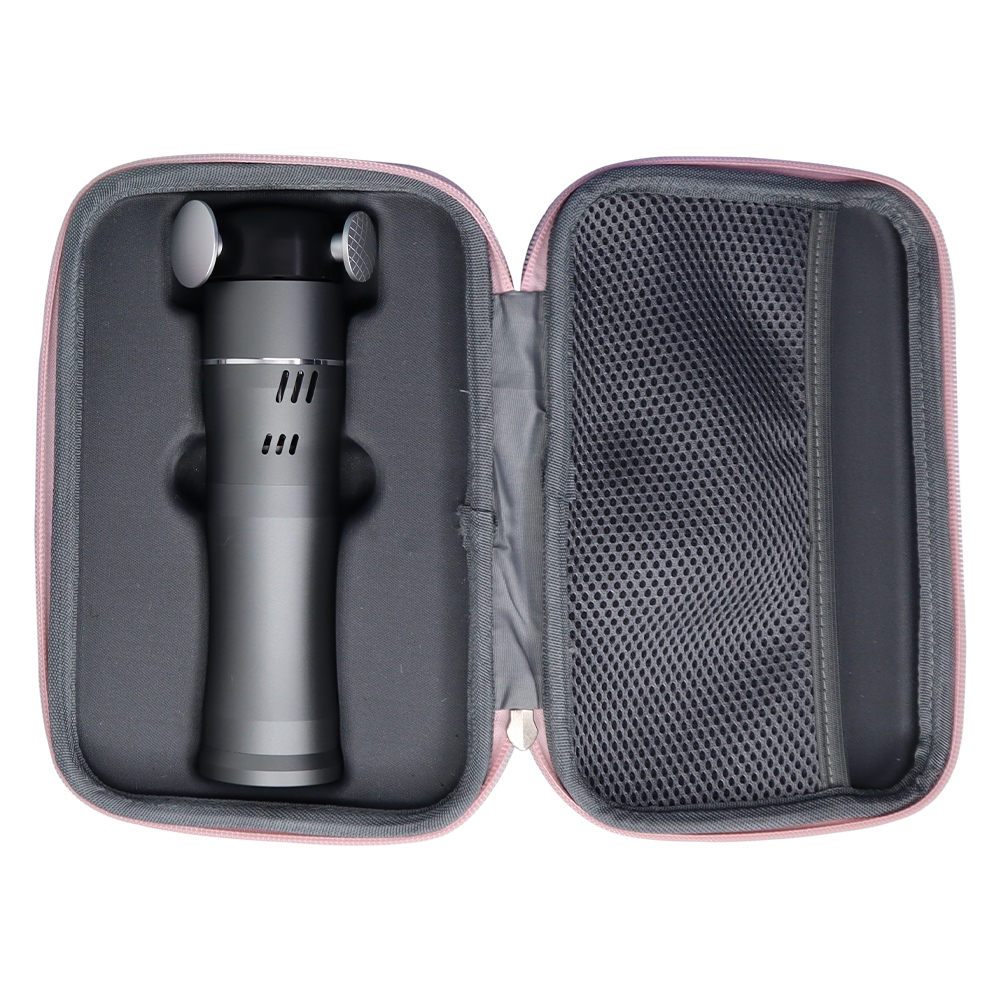

Packaging Material Storage pouch + carton
Storage Environment Temperature -5 deg C to +50 deg C; humidity 5% RH to 85% RH; free of corrosive gases



PRODUCT FUNCTIONS



  • Fascia Release & Muscle Spasm Relief

Powered by RRT 3D Energy Concentration Technology, it delivers vertical percussion paired with arc-shaped transverse vibration to trigger TVR tonic vibration reflex. It breaks up fascial adhesions, alleviates muscle stiffness, cramps and nodules, and eases lumbar strain from prolonged sitting, tight shoulders and necks, as well as sore arms. Its muscle relaxation effect far outperforms ordinary massage guns.

  • Boost Blood Circulation & Eliminate Lactic Acid Edema

High-frequency 3D vibration unclogs subcutaneous microvessels and accelerates lymphatic drainage. It rapidly flushes lactic acid after workouts to relieve limb soreness, improves lower limb edema and numb, fatigued limbs, increases oxygen supply to soft tissues, and restores muscle elasticity.

  • Targeted Physical Therapy to Improve Joint Mobility

Equipped with dedicated massage heads, it gently acts on soft tissues surrounding the shoulders, elbows, wrists and knees. It relieves fascial tension around joints, reduces joint stiffness, and enhances joint flexibility.

  • Acupoint Pressure Massage for Fatigue Relief

The massage heads mimic traditional Chinese acupoint pressing techniques to deliver targeted relaxation and ease tension. Three adjustable modes (Fascia Relaxation – Lactic Acid Breakdown – Deep Percussion) accommodate users with different pressure tolerance levels.
